Glass straight-line angle-changing edging machine

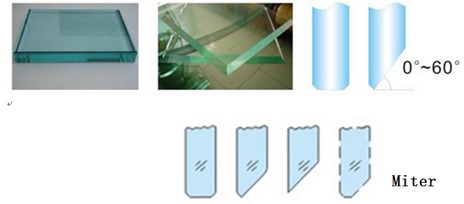

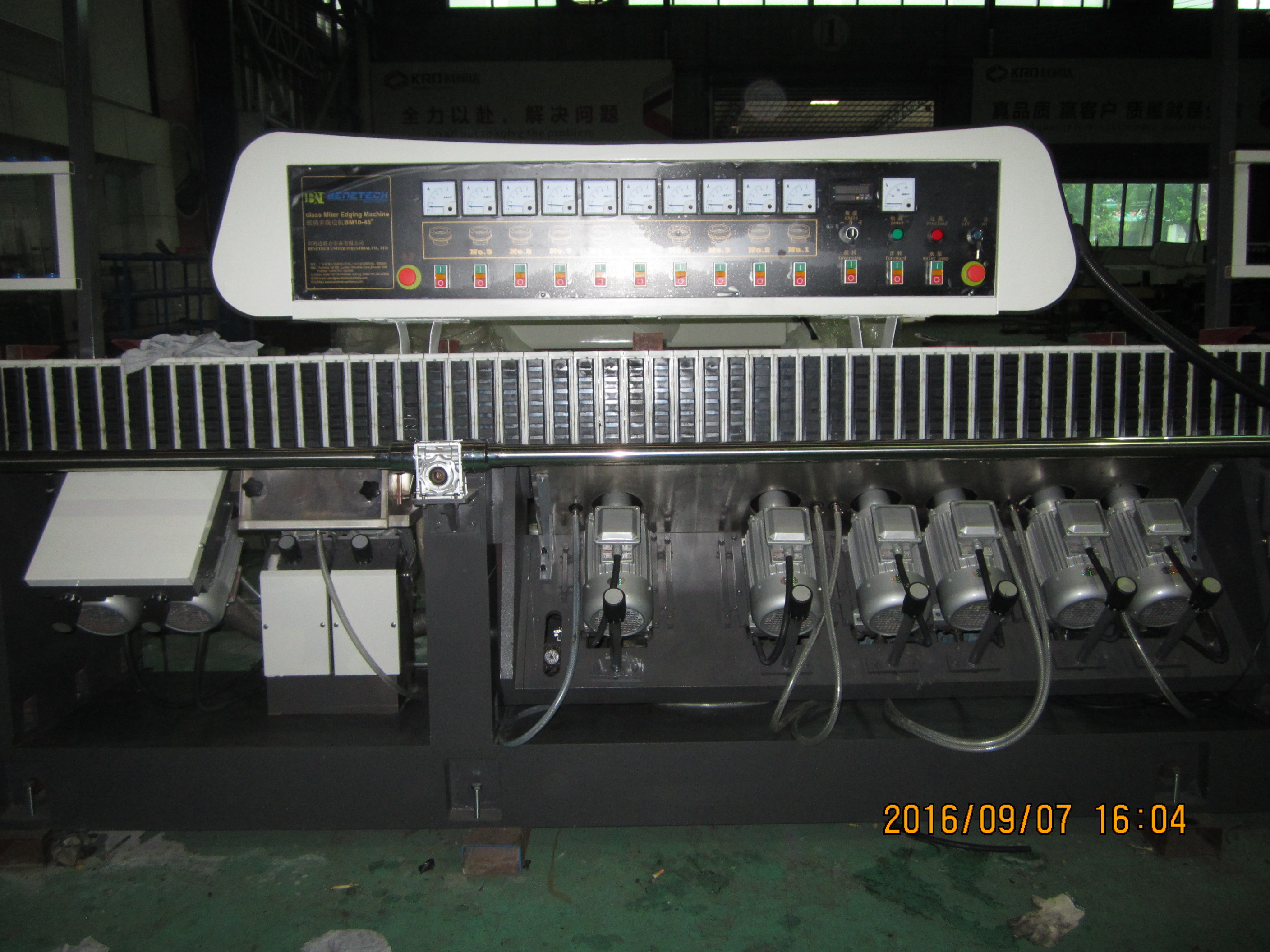

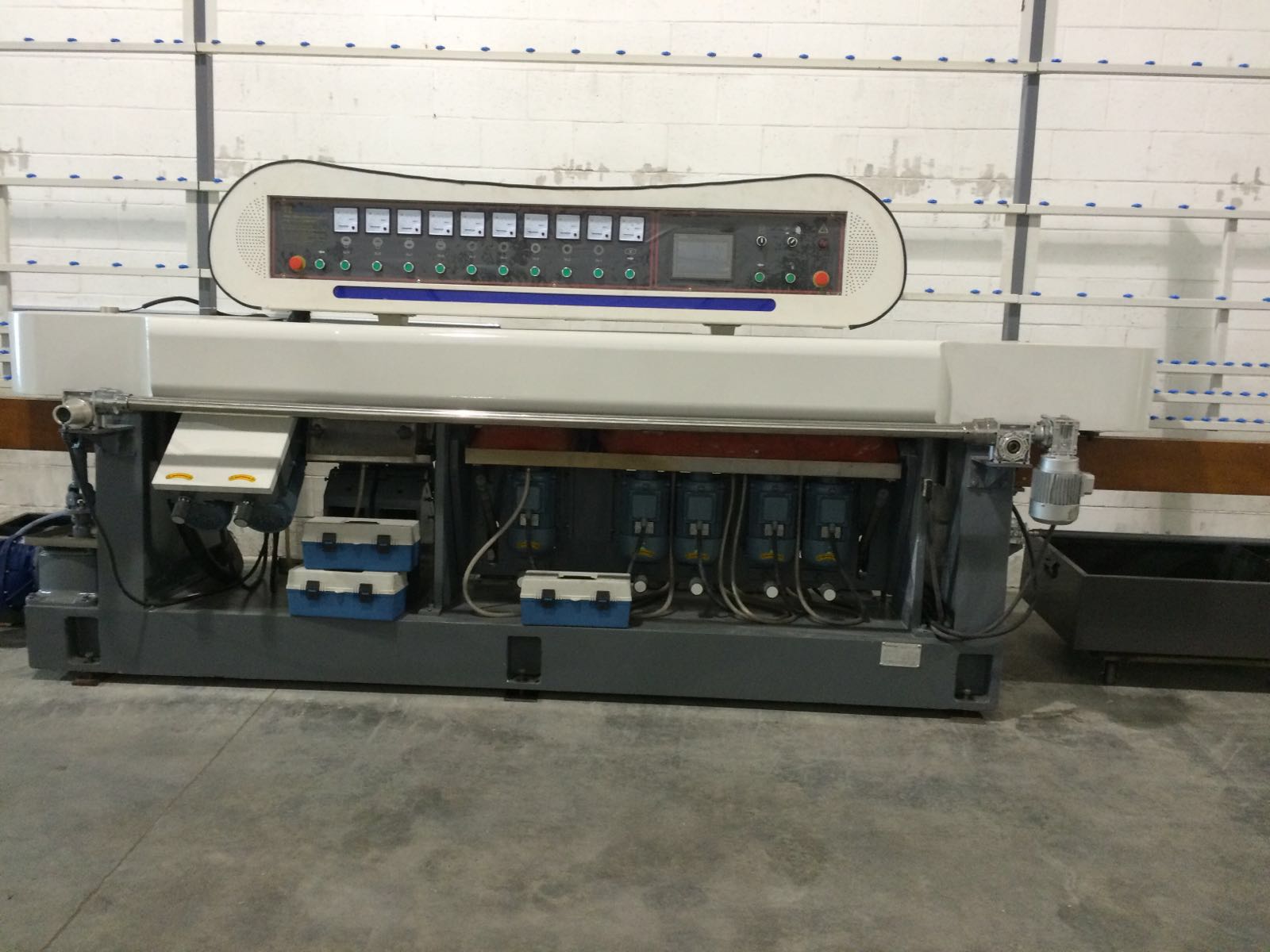

BM12-45°Glass Straight-line Angle-changing Edging Machine is a multi-functional model developed by our factory, according to market needs; gather a variety of advantages from Chinese and foreign set straight-line edge series. Apply for grinding and polishing the flat-bottom of flat glass and multi-stage edge. It is equipped with 12 grinding wheels. 12 wheels are for grinding and polishing the flat edges and chamfers of glass, and motors are of international quality special for grinding wheels, with strong force and superior performance
1-Convection adopts the rolling bearings structure. Glass transmission smoothly, processing speed quickly, quality stably.
2-With a Mitsubishi PLC control, manual and automatic control functions. The man-machine interface reveal thickness of processing glass, angle of multi-level edge, grinding speed, and other parameters.
3- It is equipped with 12 grinding wheels. 12 wheels are for grinding and polishing the flat edges and chamfers of glass, and motors are of international quality special for grinding wheels, with strong force and superior performance
4-Automatic or manual operation is subject to the customer’s selection, as well as the legend of grinding wheels.
Model | Speed (m/min) | Min. glass size (mm) | Angle | Glass thickness (mm) | Installed Power (KW) | Overall dimension (mm) | Weight (KG) |
BM9-45° | 0.8-6 | 80*80 | 45°-90° | 3-25 | 16.5 | 6800*1000*2500 | 3200 |
BM10-45° | 0.8-6 | 80*80 | 45°-90° | 3-25 | 19.5 | 7000*1000*2500 | 3500 |
BM12-45° | 0.5-6 | 20*20 | 45°-90° | 3-50 | 28.5 | 7600*1500*2600 | 7000 |
