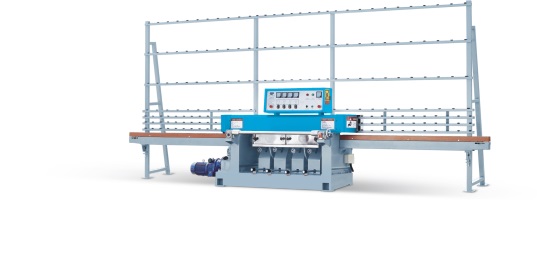

Glass straight-line pencil edging machine
Model BYM6 is suitable for grinding peripheral edge such as pencil, OG, flat edge with arises, and bevel of different shape glass by equipping different kinds of wheels. It used shaping-grinder to be grinded and polished , and can grind high-quality glass. It provided with stepless speed variator regulating the speed of processing. Automatic or manual operation is subject to the customer’s selection, as well as the legend of grinding wheels.
Model | Speed (m/min) | Min.glass size (mm) | Thickness (mm) | Power (KW) | Overall dimension (mm) | Weight (KG) |
BYM6 | 0.8-6 | 100*100 | 3-20 | 13.5 | 6200*1000*2500 | 2800 |
