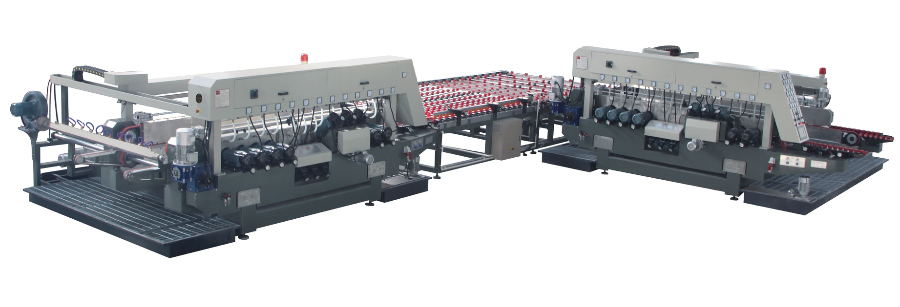

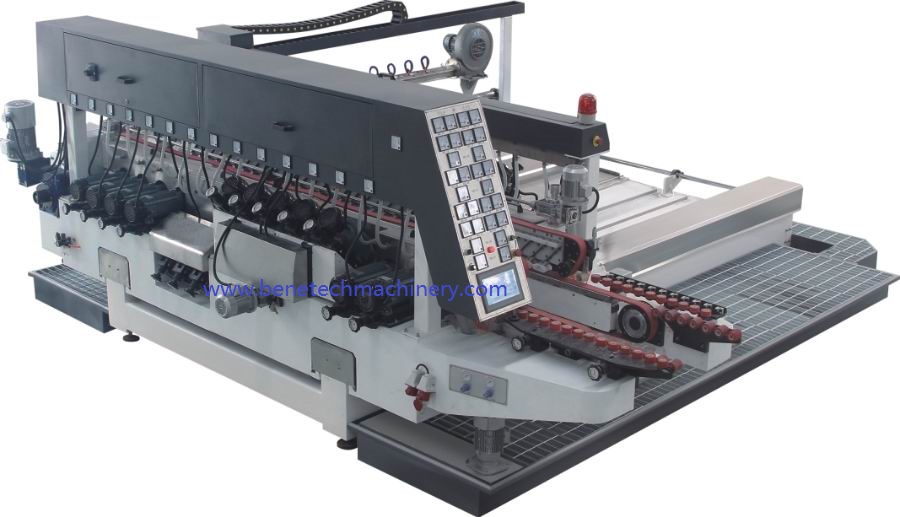

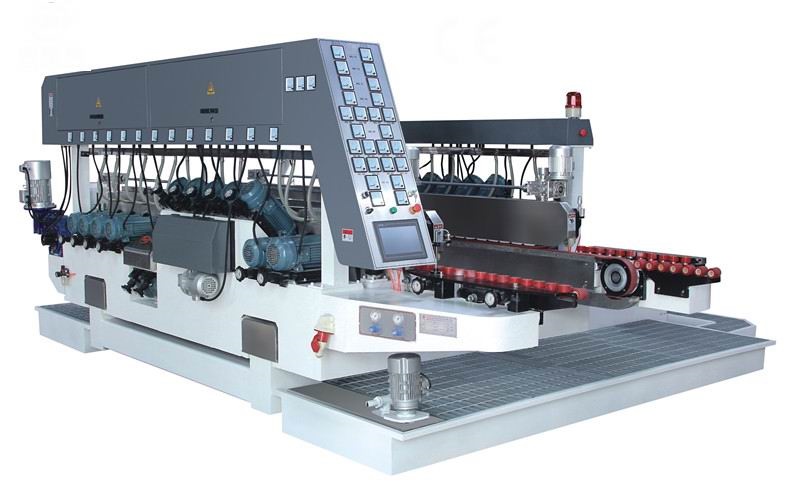

Series Glass Double Edging Machine-With automatic wear compensation

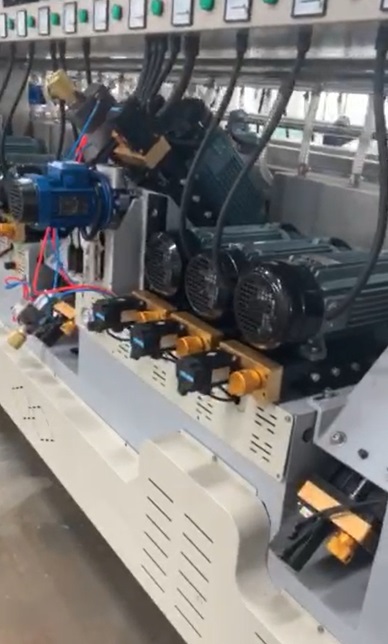

This machine is designed for processing furniture glass, home appliance glass and architectural glass, which requires high polishing and fast working speed. This machine equipped with 20 grinding spindles for process two edges at the same time, rough grinding, fine grinding and polishing will be finished during one working travel, Easy Operation, High efficiency, Good Polishing Effect is the advantage of this series machine.
It is automatic wear compensation in grinding wheels and polishing wheels.
Glass width and wheels quantity are subject to the customer's selection. More information, please contact us.
Type | BDE2000 | BDE2500 | BDE3000 | BDE3700 | BDE4500 | BDE3700A |
Installed power(kw) | 46 | 46 | 46 | 46 | 46 | 49 |
Delivery speed(m/min) | 0.5-6.5 | 0.5-6.5 | 0.5-6.5 | 0.5-6.5 | 0.5-6.5 | 0.5-6.5 |
Glass width(mm) | 200-2000 | 200-2500 | 200-3000 | 200-3700 | 200-4500 | 200-3700 |
Glass thickness(mm) | 3-30 | 3-30 | 3-30 | 3-30 | 3-30 | 3-30 |
Parallel tolerance(mm) | ±0.20mm | ±0.20mm | ±0.20mm | ±0.20mm | ±0.20mm | ±0.20mm |
Diagonal tolerance(mm) | ≤0.50mm/m² | ≤0.50mm/m² | ≤0.50mm/m² | ≤0.50mm/m² | ≤0.50mm/m² | ≤0.50mm/m² |
Weight of machine(kg) | 6100 | 6500 | 7100 | 8000 | 9000 | 8200 |
Base Dimension(mm) | 3670X4380X1880 | 4130X4380X1880 | 4630X4380X1880 | 5330X4380X1880 | 6130X4380X1880 | 5330X4600X1880 |
Cut Safety corner or remove film | 0-3mm |
