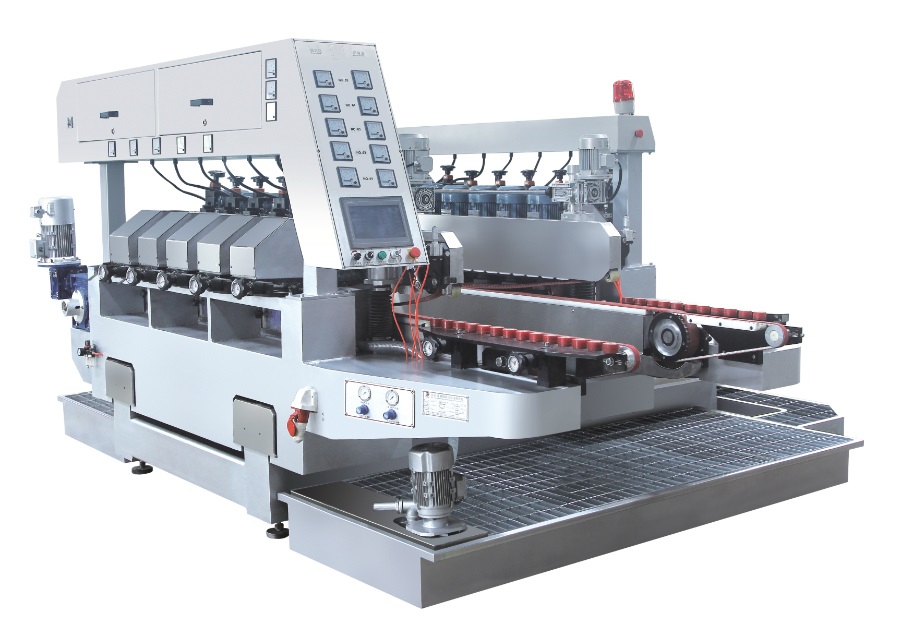

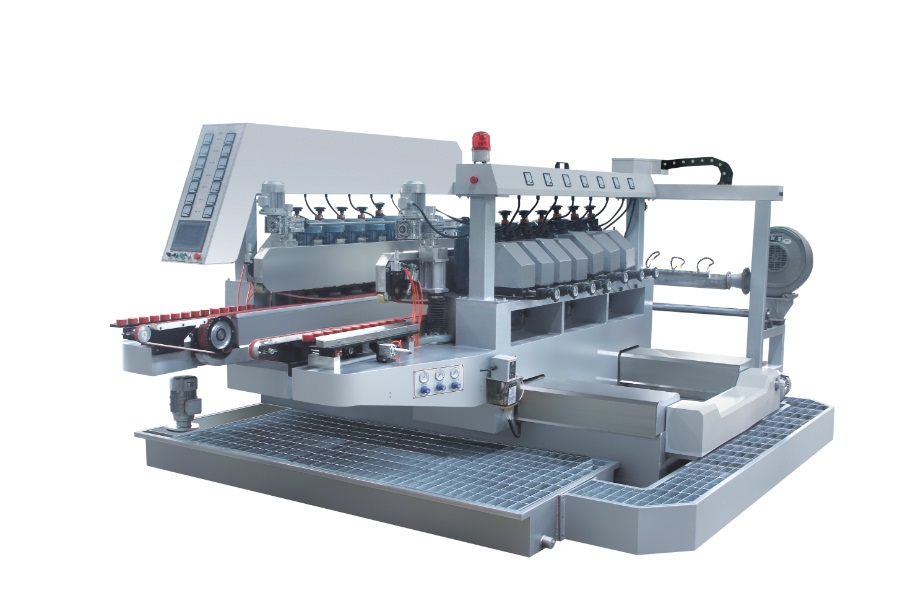

Series Glass Double Pencil Edging Machines
10 grinding series pencil double edging machine is designed for processing flat glass of different size and thickness, grinding spindles could be tilted easily, flat edge, round edge, OG edge, etc could be done by this series machine. It’s adopted of PLC control system. The grinding spindles can be oscillated freely, convenient replacing.
Glass width and wheels quantity are subject to the customer’s selection.

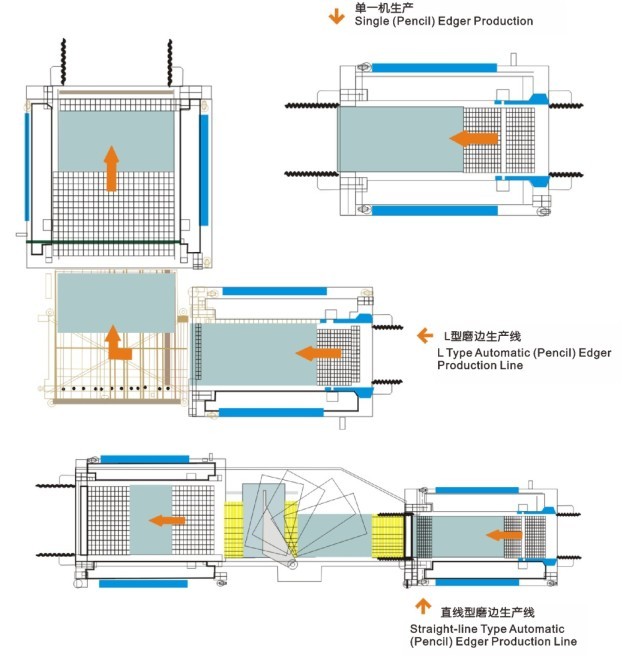

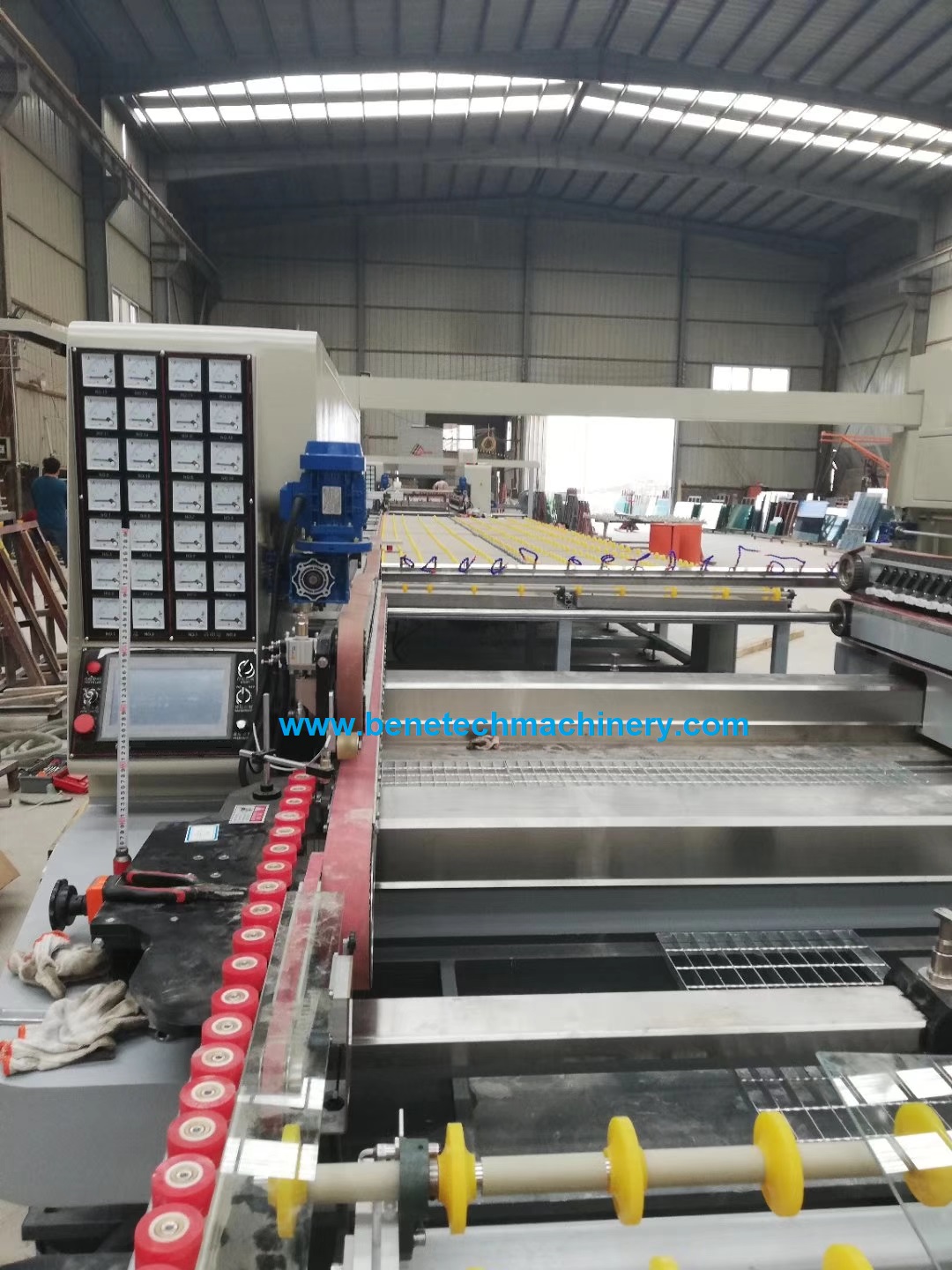

The production line is consisting of two glass double pencil edging machines, and a 90° (or straight-line) transfer table.
Specifications | BEP1210 | BEP1610 | BEP2010 | BEP2510 |
Working width(mm) | 130-1200 | 130-1600 | 150-2000 | 200-2500 |
Glass thickness(mm) | 3-12 | 3-12 | 3-12 | 3-12 |
Transmission speed(m/min) | 0.5-6 | 0.5-6 | 0.5-6 | 0.5-6 |
Total power(KW) | 24.5 | 24.5 | 24.5 | 24.5 |
Pneumatic Pressure(Kpa) | 6 | 6 | 6 | 6 |
Measurement(mm) | 3000*3880*1800 | 3400*3800*1800 | 3800*3800*1800 | 4300*3800*1800 |
Weight(kgs) | 6700 | 7100 | 7500 | 9200 |
