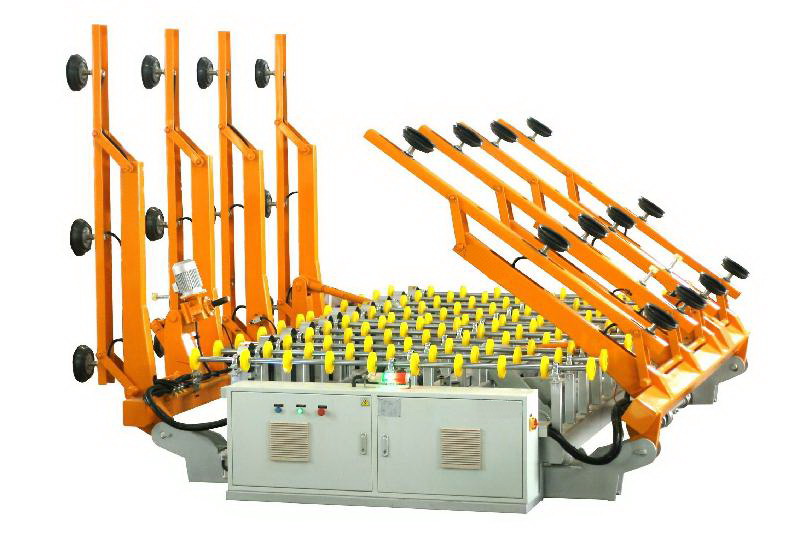

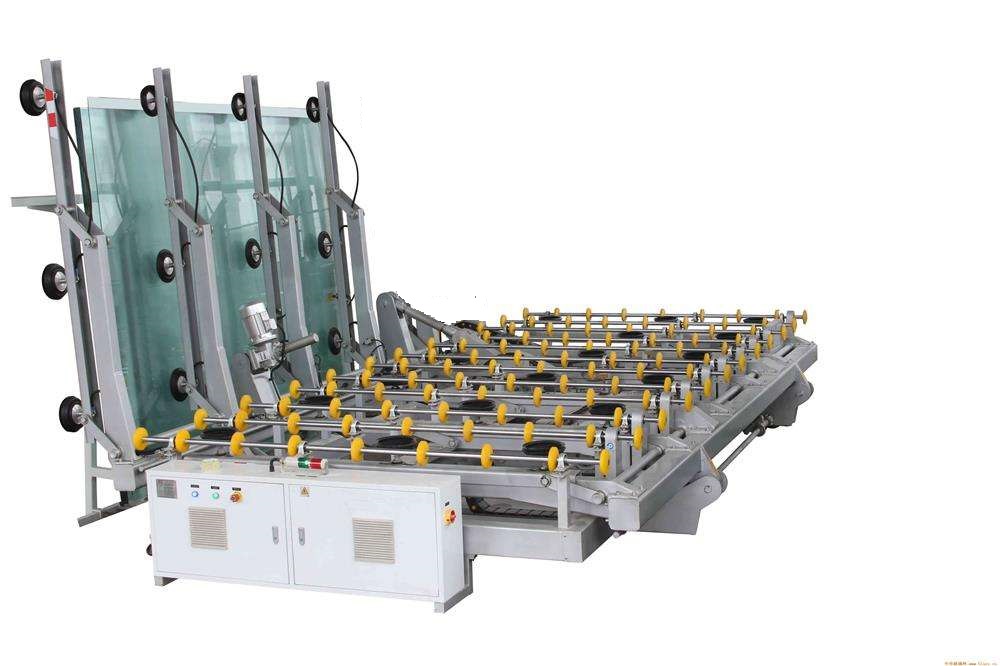

Serials Glass Automatic Loader
Machine used with PLC automatic control system, Touch panel, easy to operate and understand.
Varity design loader, specialized cutting table loader, it can match with BOTTERO, INTERMAC, BYSTRONIC, BAVALLONI cutting table; specialized double edger loader, can match with fast speed solar glass double edger, and normal speed double edger; It can also match with laminating line, insulating line and coated line.

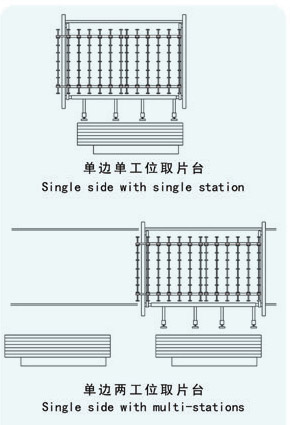

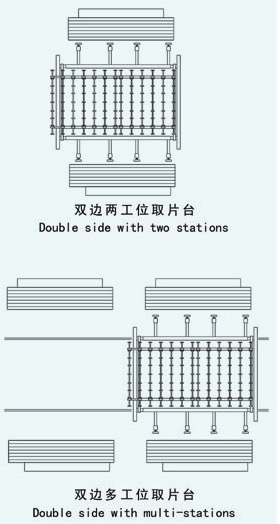

Customer can select different station loader according to their requirements and factory space.
Model | Max. glass size | Min. glass size | Power | Gross weight | Depth of Sucktion |
BL3625-S1 | 3700mm×2700mm | 1250mm×1200mm | 6.55kw | 2t | 500mm~800mm |
BL3625-S2 | 3700mm×2700mm | 1250mm×1200mm | 9.55kw | 2.7t | 500mm |
BL6033-S1 | 6100mm×3300mm | 1350mm×1400mm | 8.95kw | 6t | 500mm~800mm |
BL6033-S2 | 6100mm×3300mm | 1350mm×1400mm | 11.9kw | 6.2t | 500mm |
