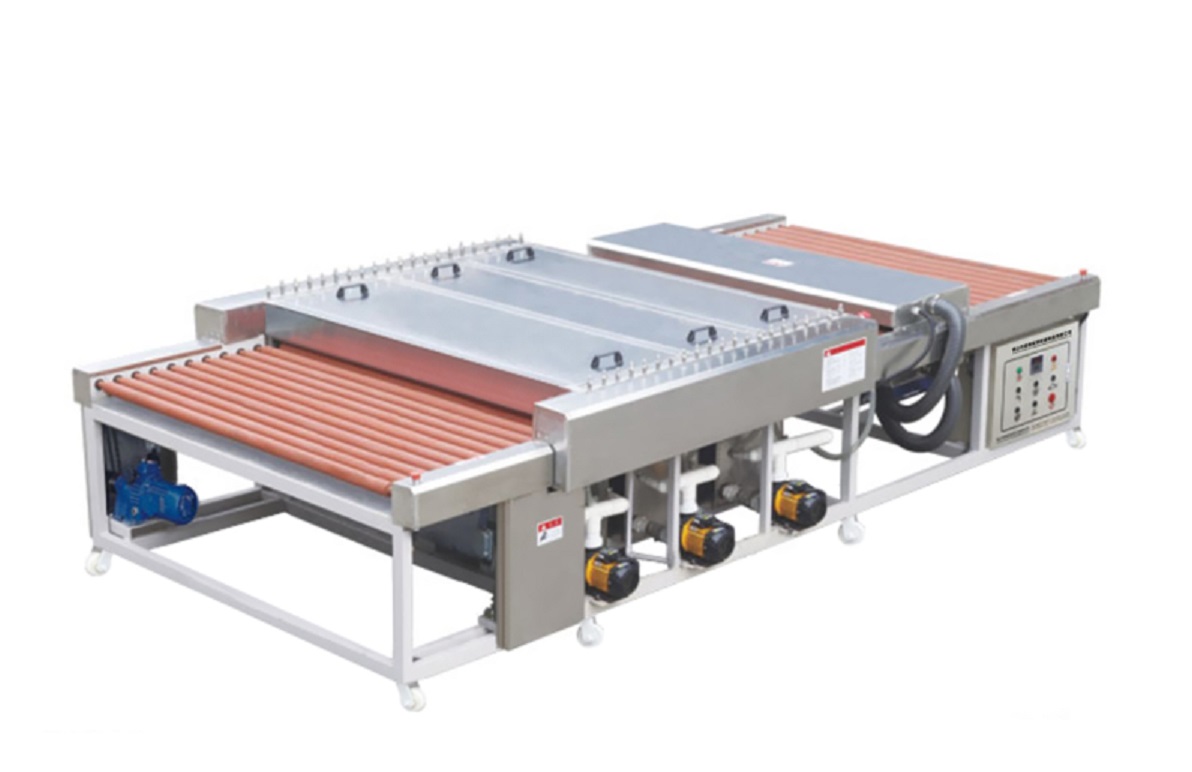

Glass Washing Machine

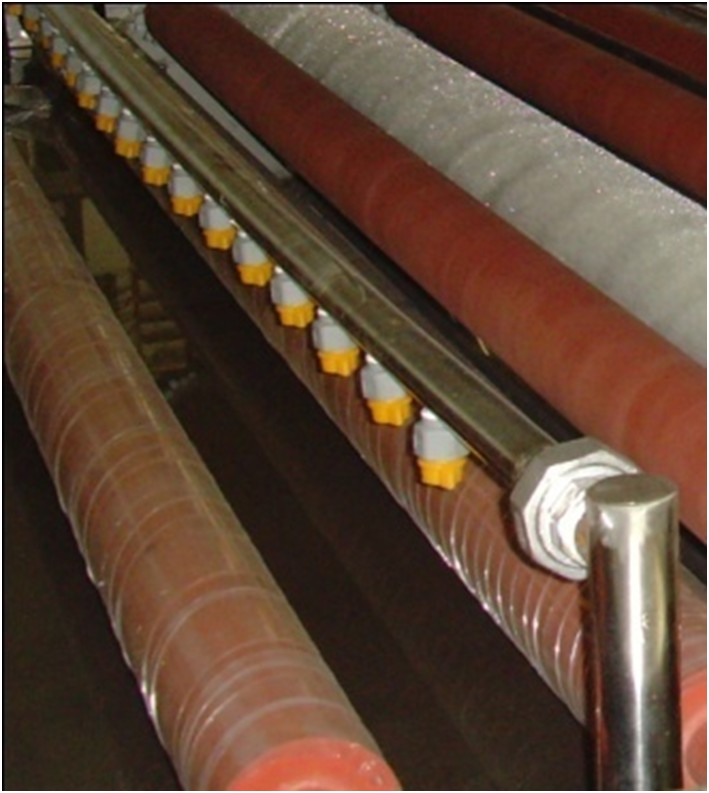

Glass washing machine is used for automatically cleaning and drying the glass or mirror with the thickness 3mm-19mm. Adopt horizontal transmission, washing and drying by 4 pairs of brush rollers and 3 pairs of sponge rollers, hot air drying system and speed is adjustable. Model of glass washing machine included:BWX500/800/1200/1600/2500. Model 0.6-1.2m is single stage washing. Model 1.6-2.5m is two-stage washing.
Wash coating and LOW-E glass are for different options.
Model | Speed (M/Min) | Min. size (mm) | Max. width (mm) | Thickness (mm) | Power (KW) | Overall dimension (mm) |
BWX500 | 0.75-6 | 40*40 | 450 | 2-6 | 6 | 1800*900*1000 |
BWX800 | 0.75-6 | 100*100 | 750 | 3-15 | 8 | 2800*1200*1000 |
BWX1200 | 0.75-6 | 150*150 | 1150 | 3-15 | 9 | 3300*1600*1000 |
BWX1600 | 0.75-6 | 200*200 | 1550 | 3-15 | 10 | 4000*2000*1000 |
BWX2000 | 1-6 | 250*250 | 1950 | 3-20 | 20 | 5000*2400*1100 |
BWX2500 | 1-6 | 450*450 | 2500 | 3-20 | 30 | 7000*3500*2800 |
