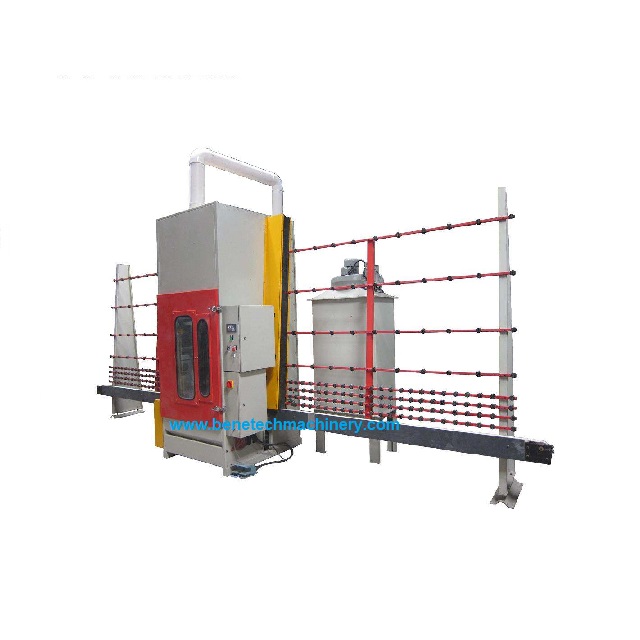

Series Automatic Vertical Glass Sandblasting Machine
The machine is specialized in processing of glass, with the support of the compressed air, spraying the Abrasive Materials onto the surfaces of the glass by sprayer on the basis of Fluidic Theory.
The processing is undergone in the Shell: the glass by side into the chamber automatically, the sprayer and spraying directly onto the glass automatically, the processing could be easily and freely completed.
The abrasive materials can be used repeatedly, taking good advantage of the materials economically. With the help of seriously sealing structure, no powder leak while processing, secure of labor and clear of environment being considered.
Model | BS1500 | BS1800 | BS2500 |
Max. glass size (mm) | 1500 *2000 | 1800*2000 | 2500*3000 |
Min. glass size (mm) | 200*500 | 200*500 | 200*500 |
Power (kw) | 4.1 | 4.1 | 4.1 |
Blasting speed(m2/h) | 25 | 25 | 25 |
Air pressure(Mpa) | 0.6-0.8 | 0.6-0.8 | 0.6~0.8 |
Suitable air compressor power | 2m3/min,15kw | 2m3/min,15kw | 2m3/min,15kw |
Overall dimension (mm) | 6050*2000*2500 | 6050*2000*2800 | 7200*2000*3500 |
