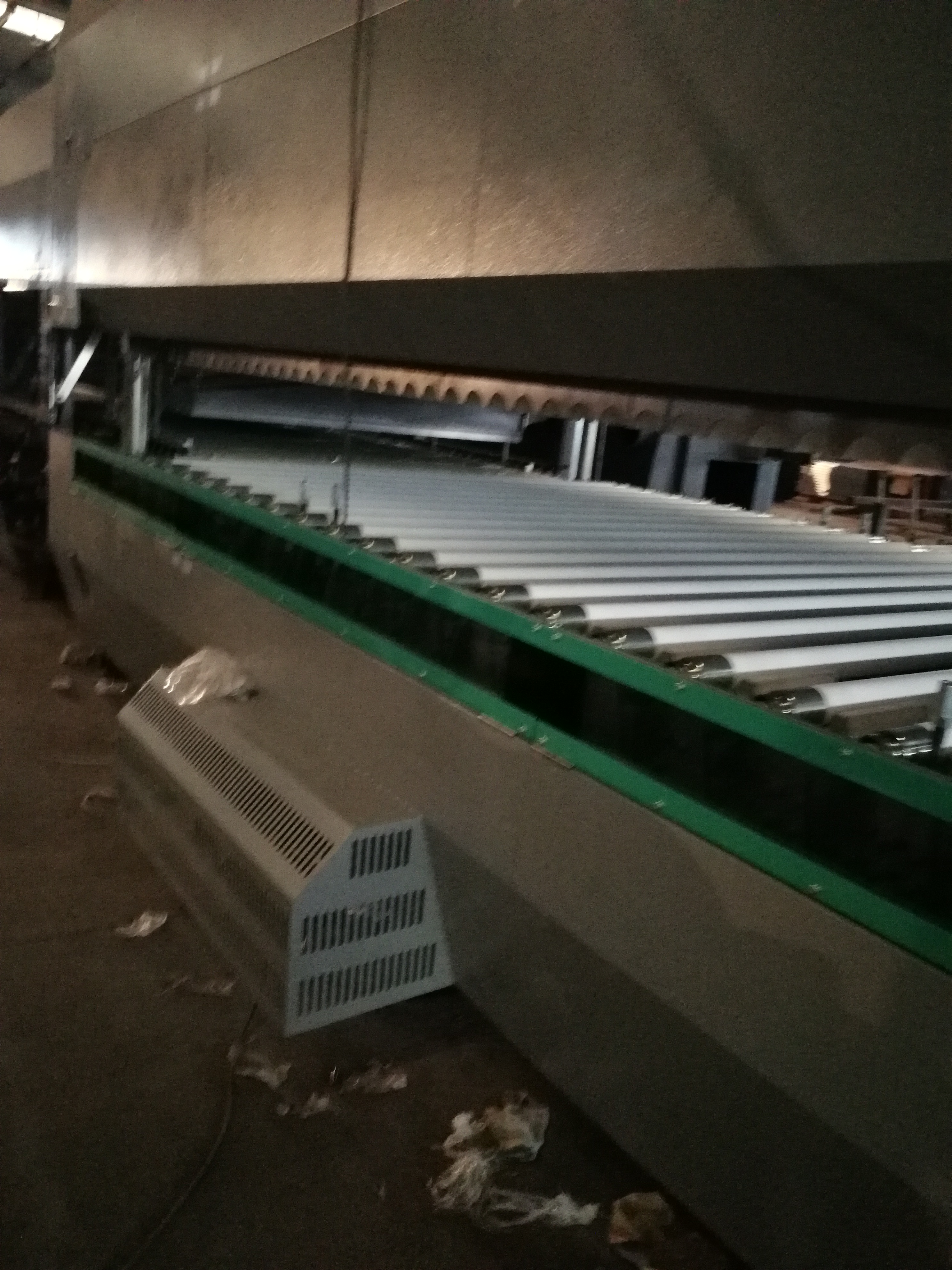

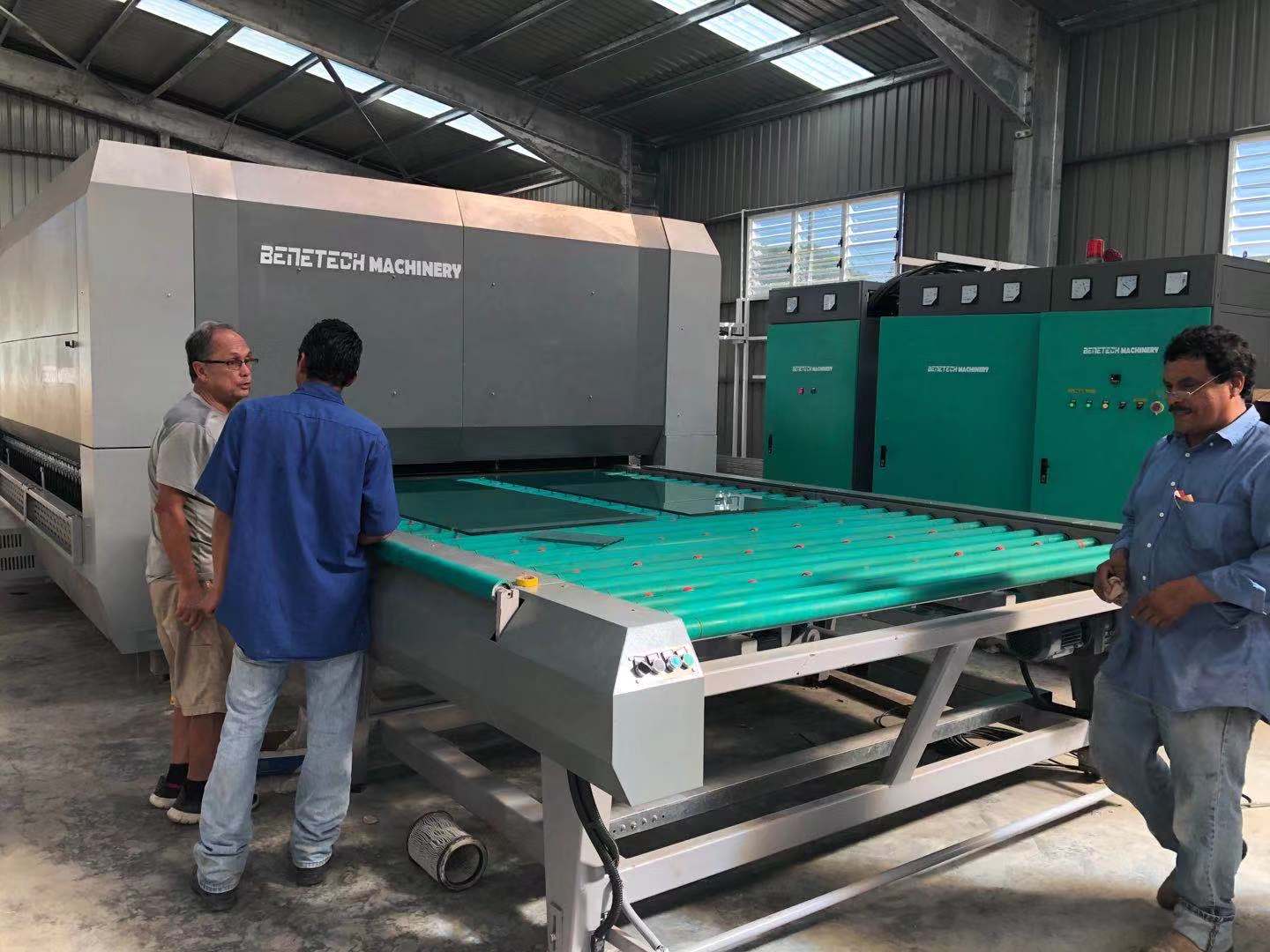

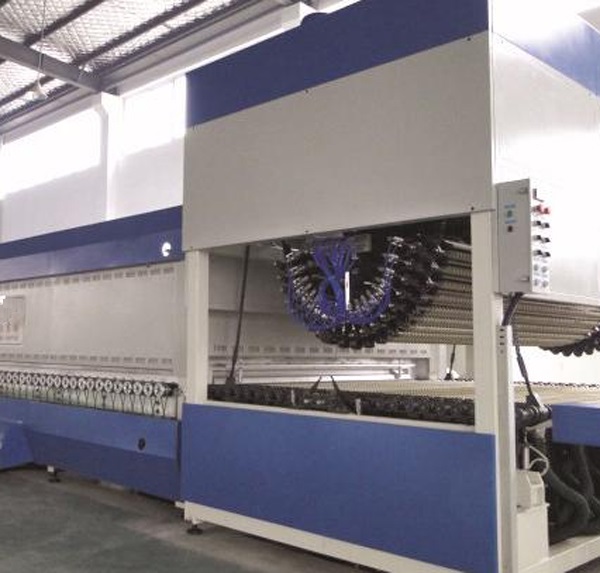

Series Glass Tempering Furnace

We are specializing in Glass Tempering Furnace. We supply Series Glass Flat Tempering Furnace, Series Glass Heating Convection Flat Tempering Furnace, Series Glass Flat & Bent Tempering Furnace, Series Double Chambers Glass Tempering Furnace, Series Moulded Bending Tempering Furnace, and Series Car Type Continuous Heat Bending Furnace and so on.

Series Glass Flat Tempering Furnace:

Model	Max. size	Min. size	Glass thickness	Productivity (㎡/h)	Power (KW)
BF2003	2000×300	50×50	3.2 － 19	8	≥80
BF 2009	2000×900	150×100	3.2 － 19	25	≥140
BF2512(T)	2500×1200	250×100	3.2 － 19	42	≥280
BF3015(T)	3000×1500	250×100	3.2 － 19	60	≥480
BF3624(T)	3600×2440	300×100	3.2 － 19	100	≥620
BF4224(T)	4200×2440	300×100	3.2 － 19	115	≥700
BF5016(T)	5000×1600	300×100	3.2 － 19	110	≥650
BF5024(T)	5000×2440	300×100	4 － 19	140	≥820
BF6030(T)	6000×3000	350×150	4 － 19	220	≥1000
BF8030(T)	8000×3000	350×150	4 － 19	300	≥1400
Note: The above sizes are the normal ones. we can design the machine according to your special requirements.

Series Glass Heating Convection Flat Tempering Furnace

Model	Max. Size	Min. Size	Thickness	Productivity (㎡/h)	Power (Kw)
BFC2515	2500×1500	250×100	3.2~15	48	≥350
BFC4012	4000×1250	300×100	3.2~15	65	≥450
BFC4015	4000×1500	300×100	3.2~19	75	≥560
BFC5015	5000×1500	300×100	3.2~19	96	≥650
BFC3620	3600×2000	300×100	4~19	92	≥580
BFC4220	4200×2000	300×100	4~19	105	≥630
BFC3624	3600×2440	350×100	4~19	110	≥630
BFC5024	5000×2440	350×100	4~19	150	≥850
BFC6030	6000×3000	450×150	5~19	232	≥1400
BFC8030	8000×3000	450×150	5~19	310	≥1600
Note: The above sizes are the normal ones. we can design the machine according to your special requirements.

Series Glass Double-direction Flat/Bent Tempering Furnace

Model	Flat Glass Size(mm)			Bent Glass Size(mm)
	Flat Glass Size(mm)			Bent Glass Size(mm)
	Max.Size	Min.Size	Thickness	Max.Size	Min.Size	Thickness	Radius
	Max.Size	Min.Size	Thickness	Max.Size	Min.Size	Thickness	Radius
BFB1225-06	1220*2500	150*280	4--19	1220*600(L)	200*350(L)	3.2-10	≥350
BFB1225-08	1220*2500			1220*800(L)		3.2-10	≥450
BFB1225-10	1220*2500			1220*1000(L)		4--10	≥450
BFB1630-06	1600*3000			1600*600(L)		3.2-10	≥350
BFB1636-08	1600*3600			1600*800(L)		3.2-10	≥450
BFB1642-10	1600*4200			1600*1000(L)		4--10	≥450
BFB1836-06	1800*3660			1800*600(L)		3.5-10	≥350
BFB1836-08	1800*3660			1800*800(L)		4--10	≥450
BFB1842-10	1800*4200			1800*1000(L)		4--10	≥450
BFB2036-06	2000*3600			2000*600(L)		3.5-10	≥350
BFB2036-08	2000*3600			2000*800(L)		4--10	≥450
BFB2042-10	2000*4200			2000*1000(L)		4--10	≥450
BFB2436-06	2400*3600			2400*600(L)		3.5-10	≥450
BFB2436-08	2400*3600			2400*800(L)		4--10	≥450
BFB2442-10	2400*4200			2400*1000(L)		4--10	≥450
BFB2450-06	2400*5000			2400*600(L)		3.5-10	≥450
BFB2450-08	2400*5000			2400*800(L)		4--10	≥450
BFB2450-10	2400*5000			2400*1000(L)		4--10	≥450
BFB2425-16	2440*2500			2440*1600(L)		5-19	≥1000
BFB2425-25	2440*2500			2440*2500(L)		5-19	≥1500
BFB2436-16	2440*3660			2440*1600(L)		5-19	≥1000
BFB2436-25	2440*3660			2440*2500(L)		5-19	≥1500
BFB2442-16	2440*4200			2440*1600(L)		5-19	≥1000
BFB2442-25	2440*4200			2440*2500(L)		5-19	≥1500
BFB2450-16	2440*5000			2440*1600(L)		5-19	≥1000
BFB2450-25	2440*5000			2440*2500(L)		5-19	≥1500
BFB2460-16	2440*6000			2440*1600(L)		5-19	≥1500
BFB2460-25	2440*6000			2440*2500(L)		5-19	≥1500
BFB2460-30	2440*6000			2440*3000(L)		5-19	≥1500
Note: 1. Productivity(5mm) is 17-18（Single Working Position)Batch/hour 2. We can design the machine according to special requirements.
