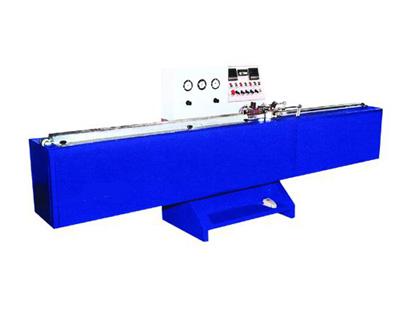

Butyl Extruder

1.It is more stable and energy-saving with the most advanced domestic technology.

2.It is more easy to operate with the man-machine interface display screen.

3.Heating time can be set up within 96 hours.

4.Speed can be changed in the scope of 0-28m/min.

5.Alarming system is set when the sealant has been exhausted so the operator can fill in the sealant in time.

6.The latex spout can be change within 6-20mm according to the width and thickness of the alum-space-frame.

7.Working table can be changed in a certain scope.

8.The squeezing cylinder can turn back and forth freely

Technical Parameter:

Power rate:                                                          1.25KW

Squeeze pressure:                                              8-20Mpa

Latex coating temperature:                                120-140

Work speed:                                                      0-28m/min

LateX spout adjustable:                                      6-20mm

Air pressure:                                                      0.5-0.8Mpa
